Floorplans

Engineered and Designed for Rail Operations

01 Floorplans

Custom floor plans available upon request.

Named and designed exclusively with our rail clients in mind, learn more about our office designs below.

Managers office

Office includes:

One Bath | Commercial Worktables | One Sink | Microwave

Dimensions

8 x 20

Deadhead

Office includes:

One Bath | Lockers | Commercial Worktables | Commercial Shelves

Dimensions

8 x 40

Double Header

Office includes:

Two Offices | One Bathroom | One Conference Room

Dimensions

16 x 20

Hot Shot

Office includes:

One Office | One Bathroom | Commercial Worktables | Commercial Signal Racks | Commercial Shelves

Dimensions

16 x 40

Highball

Tools & Hardware Storage includes:

Lockable Storage Room | Commercial Worktable(s) | Commercial Shelves

Dimensions

20 x 24

Pointsman

Manager’s Office includes:

Two Offices | One Bathroom | One Conference Room

Dimensions

20 x 40

Hammer Head

Crew Office (Alternate Design) includes:

One Office | One Bathroom | Commercial Worktable(s) | Commercial Shelves | Signal Racks

Dimensions

24 x 40

The Goat

Office includes:

One Bathroom | One Sink | Commercial Worktable(s)

Dimensions

24 x 60

The Mainline

Office with Closed Locker Room includes:

One Locker Room | One Large Flex Space Room | Two Bathrooms | One Closet | One Sink | One Refrigerator | One Microwave

Dimensions

40 x 60

Trackman

Double Office includes:

Two Offices | One Large Flex Space Room | Two Bathrooms | Two Locker Rooms | One Sink | One Refrigerator | One Microwave

Dimensions

20 x 40

Handshake

Open Crew Office includes:

One Office | One Large Flex Space Room | Full Kitchenette | One Bathroom | One Locker Room | Commercial Worktable(s) | One Sink | One Refrigerator | One Microwave

Dimensions

20 x 40

Locker Room

Open Locker Room with Office includes:

One Office | One Large Flex Space Room | Full Kitchenette | One Bathroom | One Locker Room | Commercial Worktable(s) | One Sink | One Refrigerator | One Microwave

Dimensions

20 x 40

02 Floorplans

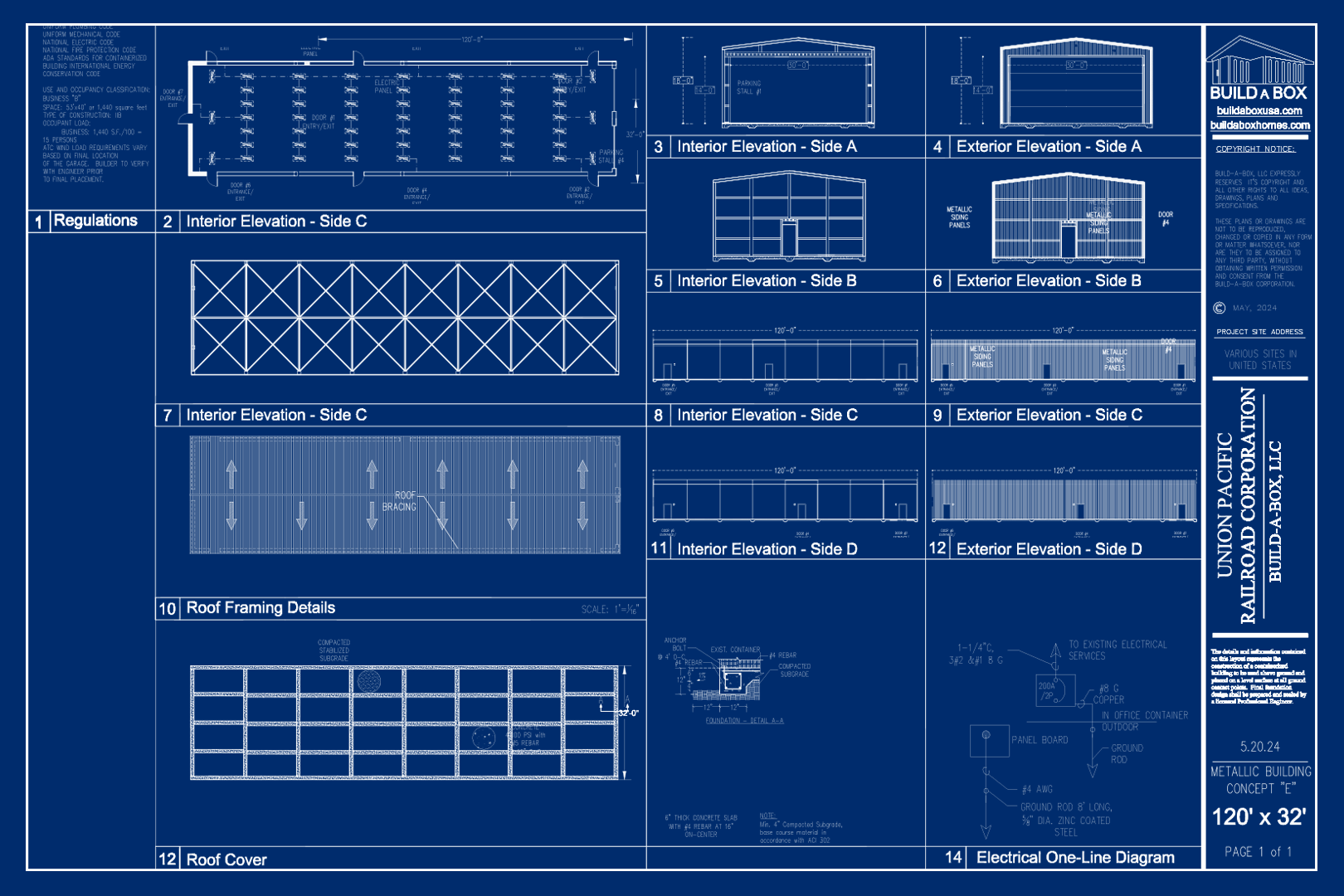

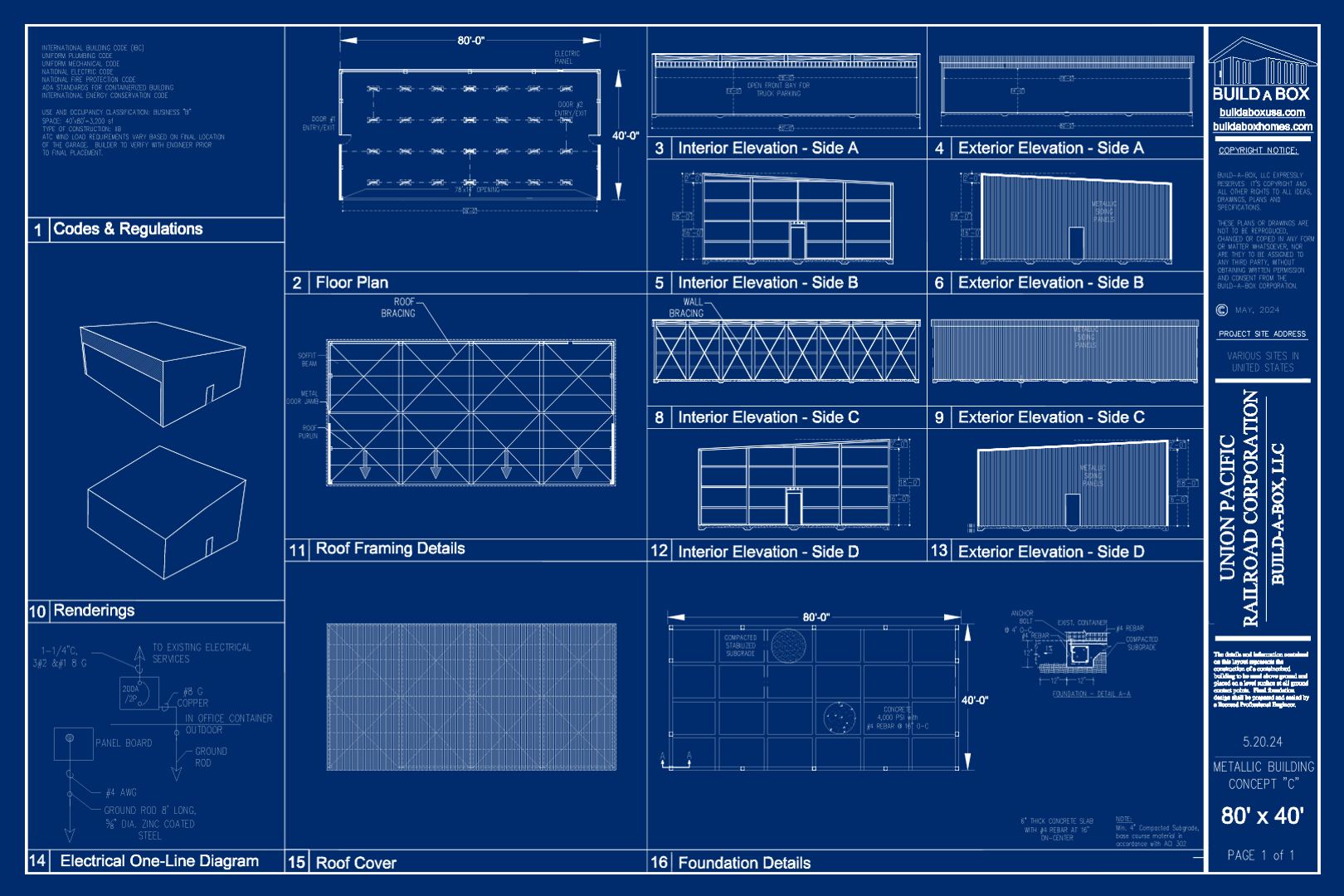

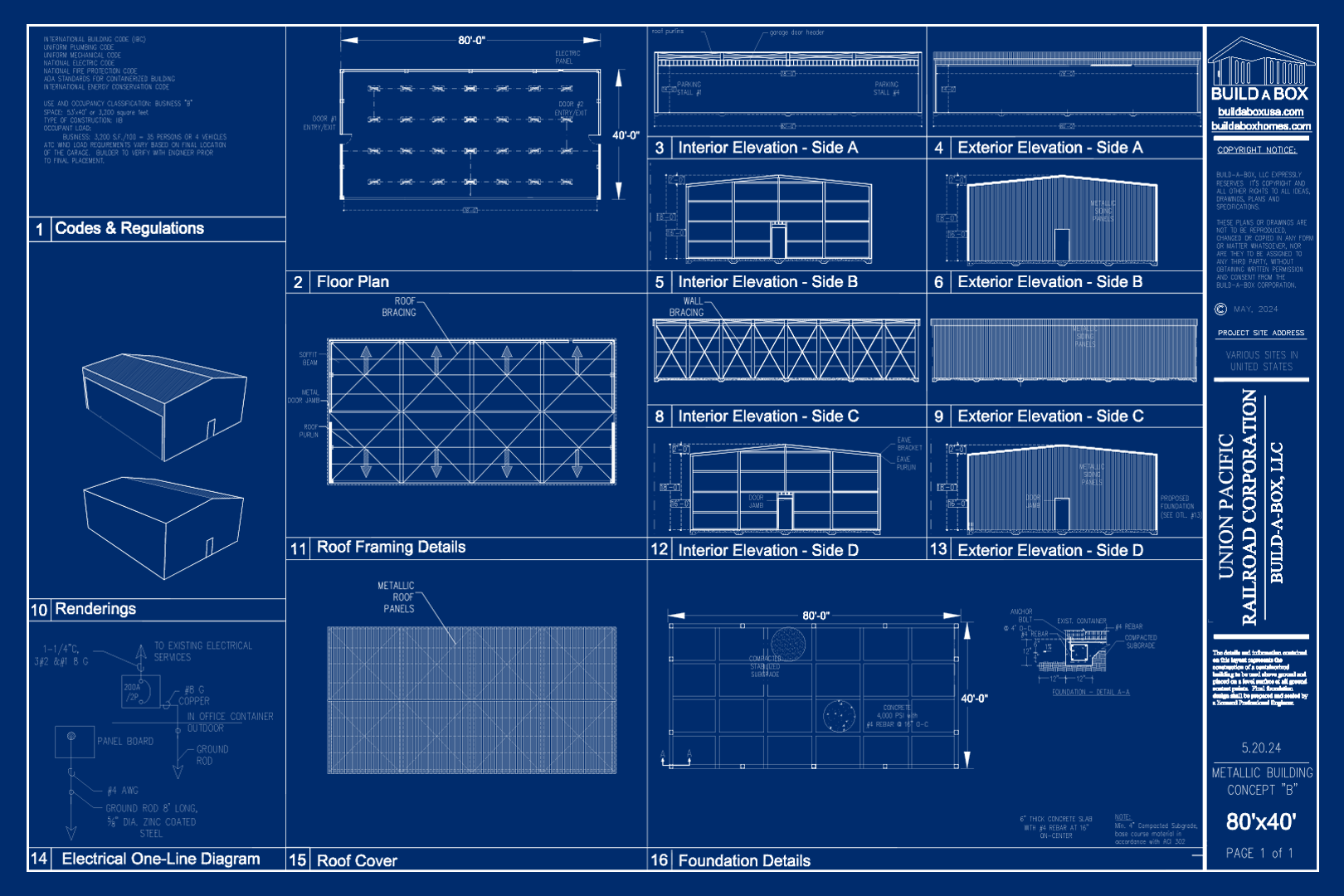

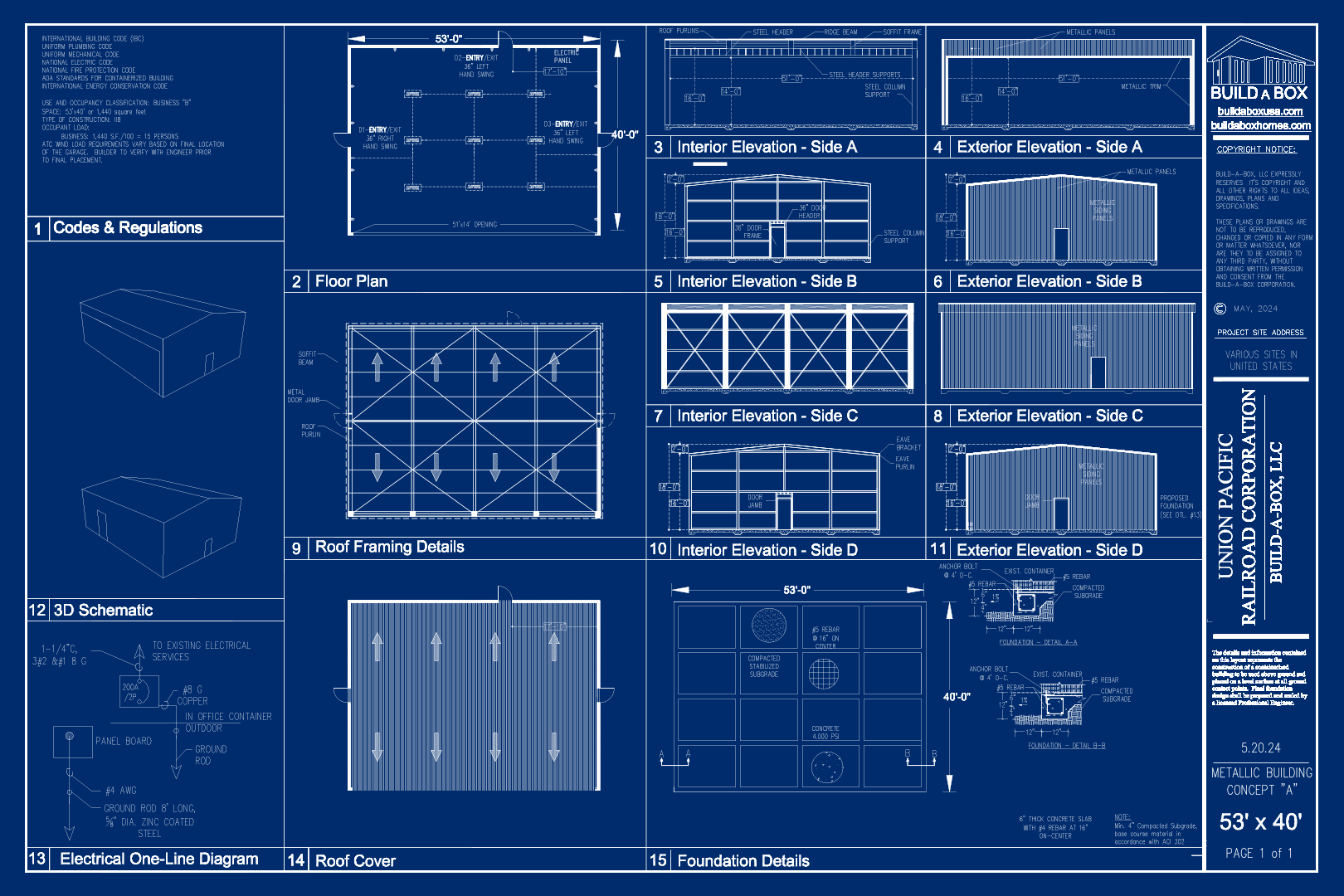

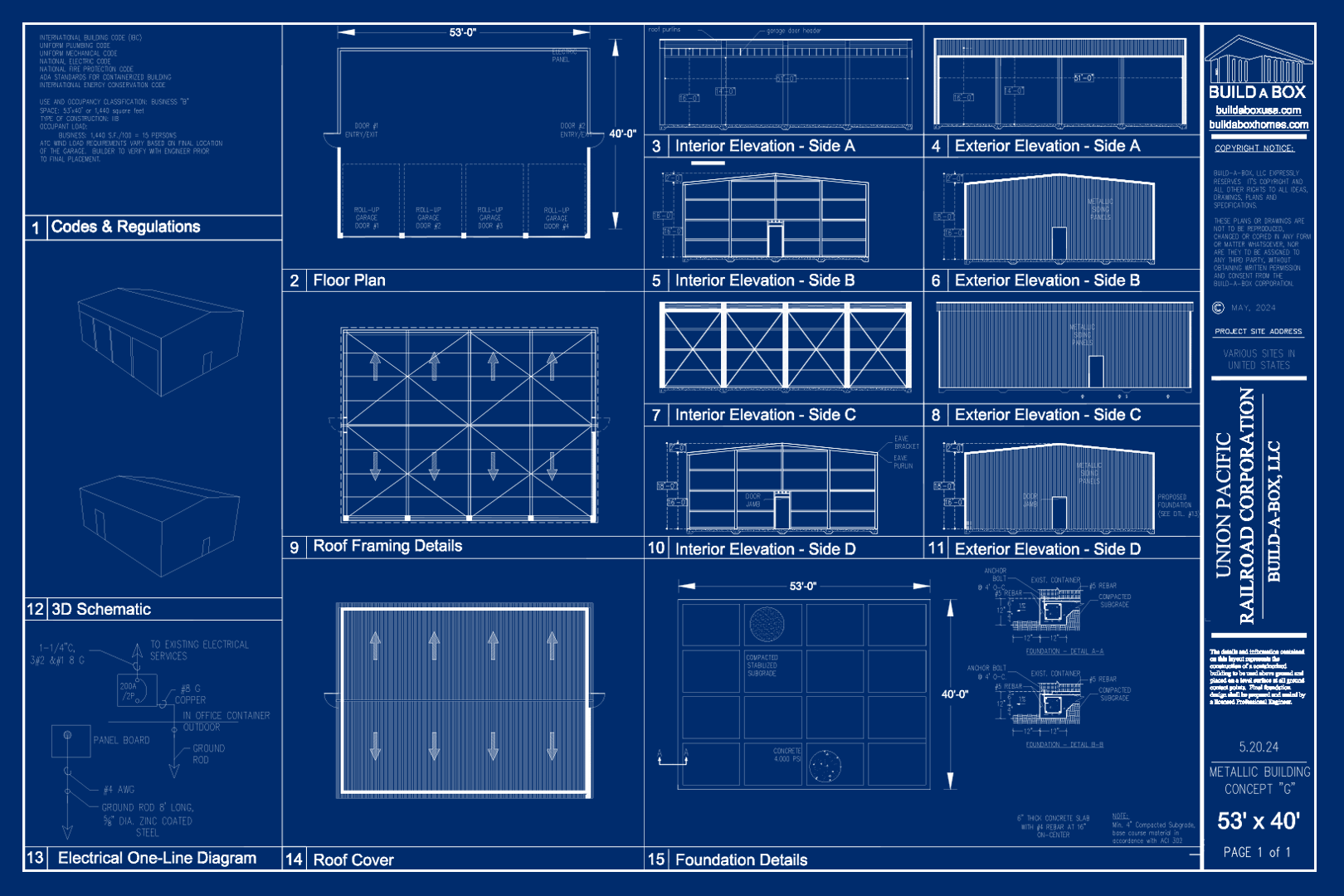

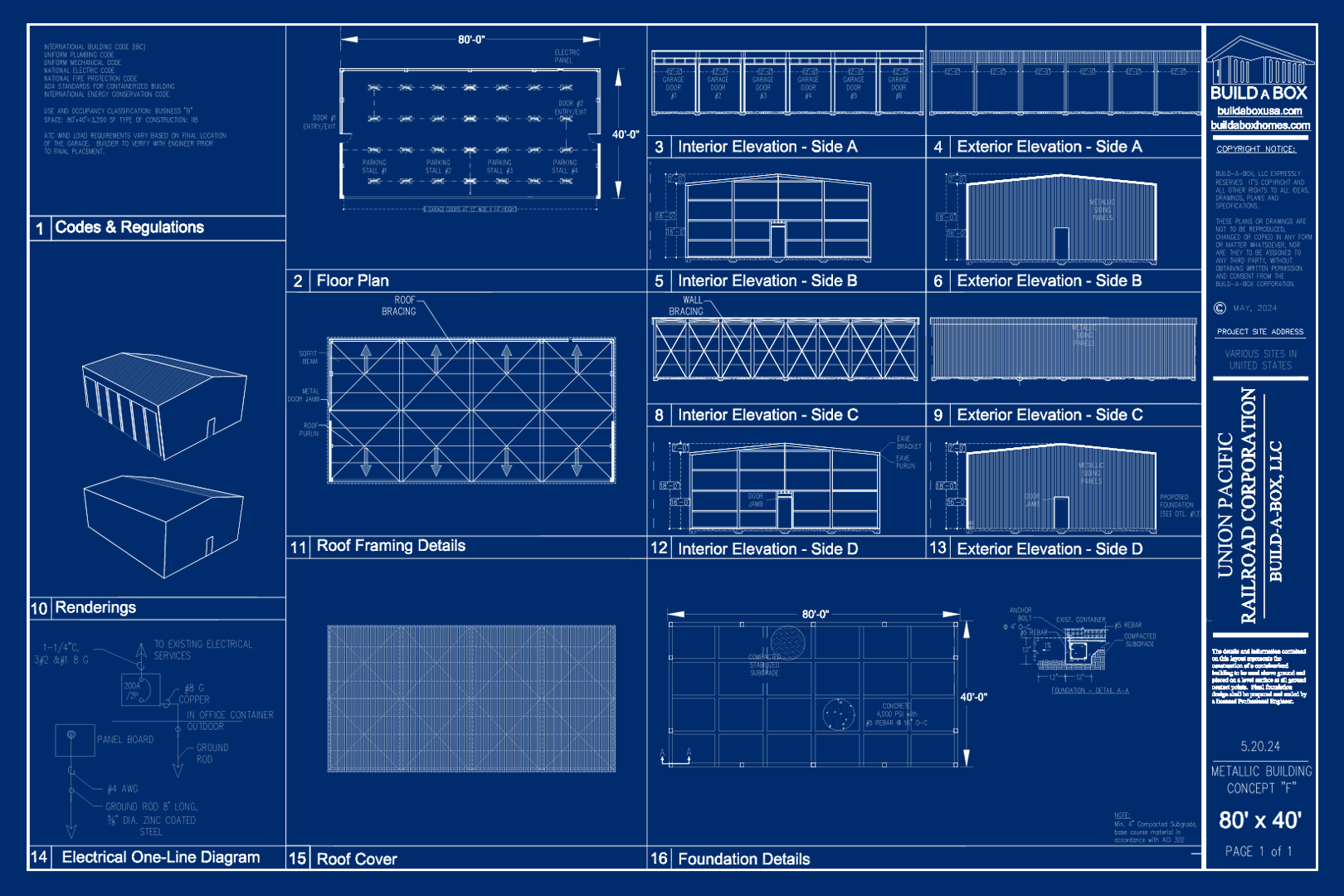

Build-A-Box Metal Warehouse
